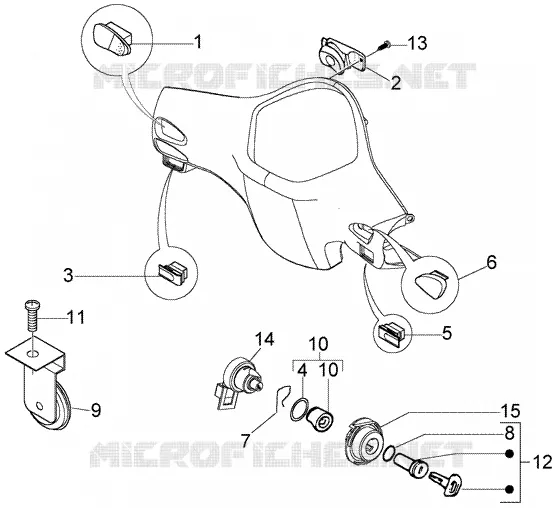

Electrical device
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
1
Headlight selector
294877
$9,18 Prix unitaire TTC
2
Turn signal lamps switch
294723
$12,02 Prix unitaire TTC
3
Horn button
638976
Non disponible
4
Cylinder retainer spring
298838
$0,51 Prix unitaire TTC
5
Start pushbutton
638975
Non disponible
6
Engine stop switch
584599
$5,53 Prix unitaire TTC
7
Spring
253937
$0,25 Prix unitaire TTC
8
Gasket ring
298731
$0,25 Prix unitaire TTC
9
Horn
CM071802
Non disponible
10
Complete lock block
298903
Non disponible
11
Screw w/ flange M6x16
434541
$0,09 Prix unitaire TTC
12
Cylinder set
573905
Non disponible
13
Self tapping screw 3,5x13
258403
$2,95 Prix unitaire TTC
14
Key switch
580621
Non disponible
15
Lock body
298581
Non disponible
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
