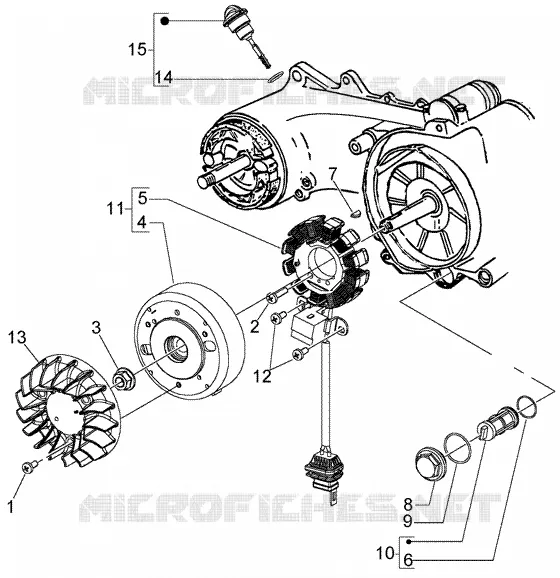

Flywheel magneto
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Screw w/ flange
484123
$0,16 Prix unitaire TTC
2
screw M5x21
015856
$0,16 Prix unitaire TTC
3
Flanged nut
289005
$2,99 Prix unitaire TTC
4
Rotor
638994
Non disponible
5
Stator
638993
Non disponible
6
O-ring 20,35x1,78
288474
$0,08 Prix unitaire TTC
7
Transmission key
000267
$1,19 Prix unitaire TTC
8
Oil filter plug
288548
$29,59 Prix unitaire TTC
9
O-ring 31,47x1,78
285536
$0,92 Prix unitaire TTC
10
Oil filter
431242
$11,15 Prix unitaire TTC
11
Cdi magneto assy
82798R
$115,08 Prix unitaire TTC
12
Self-tapping screw M5x12
015585
$0,08 Prix unitaire TTC
13
Fan
830286
Non disponible
14
Gasket ring 14,43x9,19x2,62
827085
$2,99 Prix unitaire TTC
15
Complete oil level dipstick
832130
$2,94 Prix unitaire TTC
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
