par

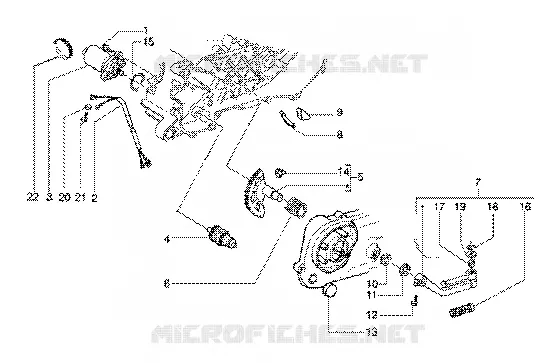

Starting motor-starter lever
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
screw M6x35
414838
$0,67 Prix unitaire TTC
2
Cable harn.
294941
Non disponible
3
Starter motor
294713
Non disponible
4
Pinion, as.
294832
Non disponible
5
Start.shaft
434087
Non disponible
6
Starter lever return spring
289495
$15,81 Prix unitaire TTC
7
Starter lever
286214
$22,19 Prix unitaire TTC
8
Plate
286206
$3,65 Prix unitaire TTC
9
Pad
286207
$0,39 Prix unitaire TTC
10
Washer 16,3x23,8
433987
$2,99 Prix unitaire TTC
11
Snap ring
006635
$0,25 Prix unitaire TTC
11
Circlip
006416
$0,08 Prix unitaire TTC
12
Screw w/ flange M6x25
414837
Non disponible
13
Cover
483859
$0,29 Prix unitaire TTC
14
Pad
433603
Non disponible
15
Gasket
224962
$4,82 Prix unitaire TTC
16
Guard
286217
$5,45 Prix unitaire TTC
17
Spring
286218
Non disponible
18
Ring
288041
$3,70 Prix unitaire TTC
19
Washer 10,1x2,5
286219
$8,12 Prix unitaire TTC
20
Flat washer 4,2x7,6x0,9
016404
$0,42 Prix unitaire TTC
21
screw
018644
$3,70 Prix unitaire TTC
22
Hose clamp
433459
Non disponible
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
