par

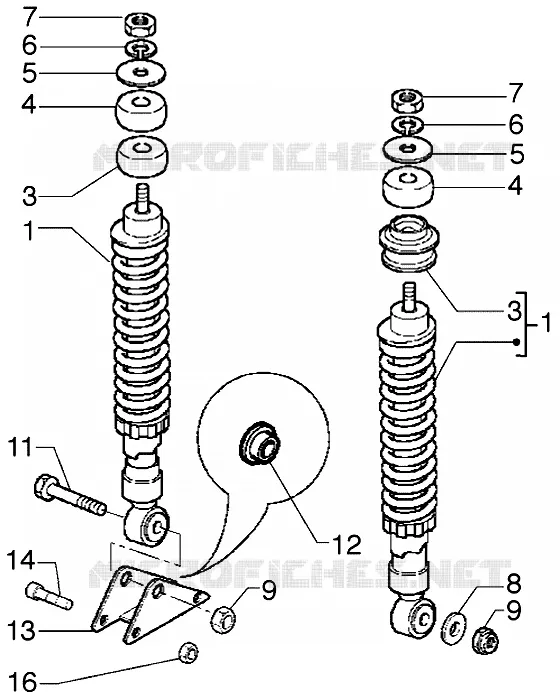

Rear shock absorber
1
1
3
3
4
4
5
5
6
6
7
7
8
9
9
11
12
13
14
16
1
Shock absorber
59753100E4
Non disponible
3
Pad
174874
$2,36 Prix unitaire TTC
4
Pad
216209
$5,53 Prix unitaire TTC
5
Washer
562809
$2,95 Prix unitaire TTC
6
Spring washer 13,75x8,15x4,5
016408
$0,08 Prix unitaire TTC
7
Nut M8
021108
$0,25 Prix unitaire TTC
8
Washer
016627
Non disponible
9
Self locking nut M10
232108
Non disponible
11
Screw w/ flange M10
268158
$1,26 Prix unitaire TTC
12
Bush
597149
$3,65 Prix unitaire TTC
13
Bracket
564492
Non disponible
14
Screw m8x50
432334
$3,65 Prix unitaire TTC
14
Hex socket screw M8x50
844483
$0,67 Prix unitaire TTC
16
Nut M8
020008
$0,08 Prix unitaire TTC
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
