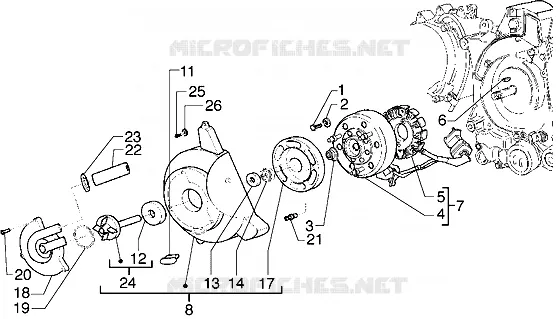

Flywheel magneto
1
2
3
4
5
6
7
8
11
12
13
14
17
18
19
20
21
22
23
24
25
26
1
Screw m5x22
015901
$2,25 Prix unitaire TTC
2
Washer 5.3x10x10
006965
$0,08 Prix unitaire TTC
3
Flanged nut M12
436783
Non disponible
4
(Mitsuba) complete rotor
486140
Non disponible
5
Stator
833697
Non disponible
5
Stator
828135
Non disponible
6
Transmission key
000267
$1,19 Prix unitaire TTC
7
Complete magneto flywheel
58059R
$113,40 Prix unitaire TTC
7
Cdi magneto assy
82572R
Non disponible
8
Air deflector
8299615
Non disponible
9
Screw M5x22
828662
$0,25 Prix unitaire TTC
11
Cover
825529
$5,38 Prix unitaire TTC
12
Gasket ring
485084
Non disponible
12
Gasket ring
842595
Non disponible
13
Ceramic insert
486216
Non disponible
14
Ball bearing
827149
Non disponible
15
screw
030251
$2,25 Prix unitaire TTC
16
Water pump shaft assy.
827714
Non disponible
17
Drive coupling
487459
$7,23 Prix unitaire TTC
18
Water pump cover
486237
$20,60 Prix unitaire TTC
19
O-ring
485080
$0,72 Prix unitaire TTC
20
Screw M5x22
828662
$0,25 Prix unitaire TTC
21
screw
828569
Non disponible
22
Oil delivery pipe
840022
Non disponible
22
Oil delivery pipe
827207
Non disponible
23
Hose clamp
CM001908
$3,65 Prix unitaire TTC
24
Water pump shaft assy.
827714
Non disponible
25
screw
828493
$2,95 Prix unitaire TTC
26
Washer 5.3x10x10
006965
$0,08 Prix unitaire TTC
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
