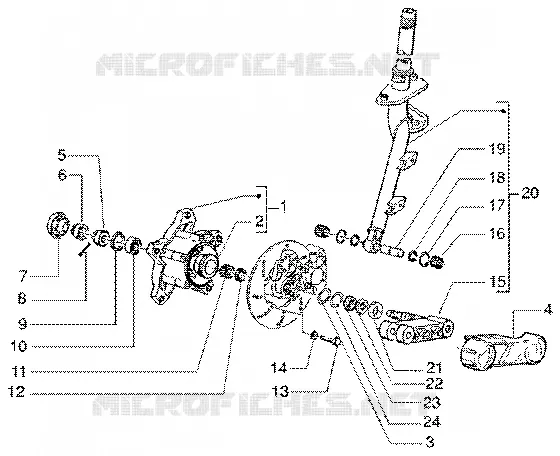

Steering column-disc brake
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
Front wheel hub
560284
Non disponible
2
Ring gear counts Km socket
267818
$33,03 Prix unitaire TTC
3
Washer
177414
$0,75 Prix unitaire TTC
4
Front suspension arm cover
561433
Non disponible
5
Nut
021114
$0,51 Prix unitaire TTC
6
Cover
182546
$28,44 Prix unitaire TTC
7
Cap
177609
$2,19 Prix unitaire TTC
8
Split pin
012789
$0,16 Prix unitaire TTC
9
Snap ring
006635
$0,25 Prix unitaire TTC
10
Bearing
177610
$8,41 Prix unitaire TTC
11
Roller cage
177442
$4,04 Prix unitaire TTC
12
Gasket ring
177443
$1,77 Prix unitaire TTC
13
Hex socket screw M6x20
271147
$0,17 Prix unitaire TTC
14
Spring washer 6,4x11x0,5
006966
$0,08 Prix unitaire TTC
15
Suspension arm
2737115
$201,72 Prix unitaire TTC
16
Roller cage
198513
$5,97 Prix unitaire TTC
17
Gasket
006731
$0,34 Prix unitaire TTC
18
Gasket ring
119219
$0,67 Prix unitaire TTC
19
Piston pin
177451
$3,03 Prix unitaire TTC
20
Steering column tube
5649775
Non disponible
21
O-ring
177408
$0,08 Prix unitaire TTC
22
Washer
177445
$0,34 Prix unitaire TTC
23
Ring
177521
$0,66 Prix unitaire TTC
24
Circlip
006422
$0,16 Prix unitaire TTC
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
