par

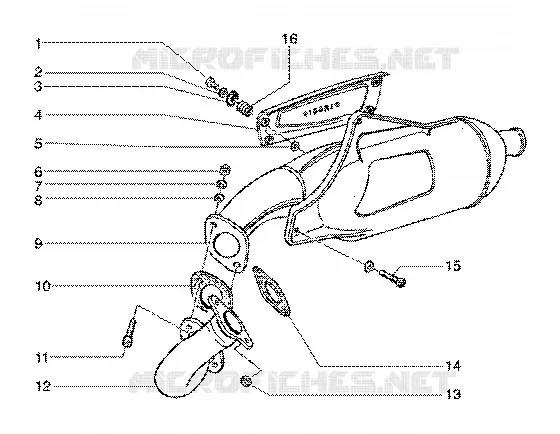

Silencer
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
screw M5x10
433800
$0,19 Prix unitaire TTC
2
Spring washer 8,5x5,1x1,5
016405
$0,08 Prix unitaire TTC
3
Bowl
482282
$4,82 Prix unitaire TTC
4
Protection
482280
$18,14 Prix unitaire TTC
5
Washer
103556
Non disponible
6
Nut
001564
$0,27 Prix unitaire TTC
7
Spring washer 13,75x8,15x4,5
016408
$0,08 Prix unitaire TTC
8
Washer
016604
$2,99 Prix unitaire TTC
9
Silencer
482274
Non disponible
10
Gasket
432127
Non disponible
11
screw M8x30
015792
$0,51 Prix unitaire TTC
12
Exhaust pipe
484344
Non disponible
13
Flanged nut
015341
$0,42 Prix unitaire TTC
14
Gasket
431600
Non disponible
15
Screw m8x50
432334
$3,65 Prix unitaire TTC
15
Hex socket screw M8x50
844483
$0,67 Prix unitaire TTC
16
Spacer
482281
$5,20 Prix unitaire TTC
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
