par

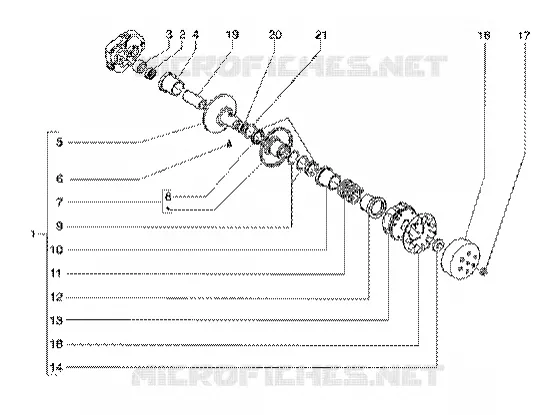

Driven pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
16
17
19
20
21
1
Clutch driven pulley assy.
4854415
Non disponible
1
Clutch driven pulley assy.
478751
Non disponible
2
Bearing
431068
Non disponible
3
Spacer
432307
Non disponible
4
Cup
431067
Non disponible
5
Pulley, half
826800
Non disponible
6
Pin
479415
$0,68 Prix unitaire TTC
7
Pulley, half
4312855
Non disponible
8
Gasket ring
431089
$2,55 Prix unitaire TTC
9
Gasket
430585
$4,89 Prix unitaire TTC
10
Pulley side cap
4310935
$9,79 Prix unitaire TTC
11
Spring
478752
$18,17 Prix unitaire TTC
12
Clutch side cap
487936
$5,73 Prix unitaire TTC
13
Clutch assy
485442
Non disponible
14
Ring nut
433232
$2,31 Prix unitaire TTC
16
Clutch drum
82502R
Non disponible
17
Flanged nut M12
436783
Non disponible
19
Spacer
431070
Non disponible
20
Radial bearing 17x30
483261
Non disponible
20
Bearing
431069
Non disponible
20
Bearing 17x30x7
82753R
$19,17 Prix unitaire TTC
21
Gasket
431065
$0,42 Prix unitaire TTC
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
